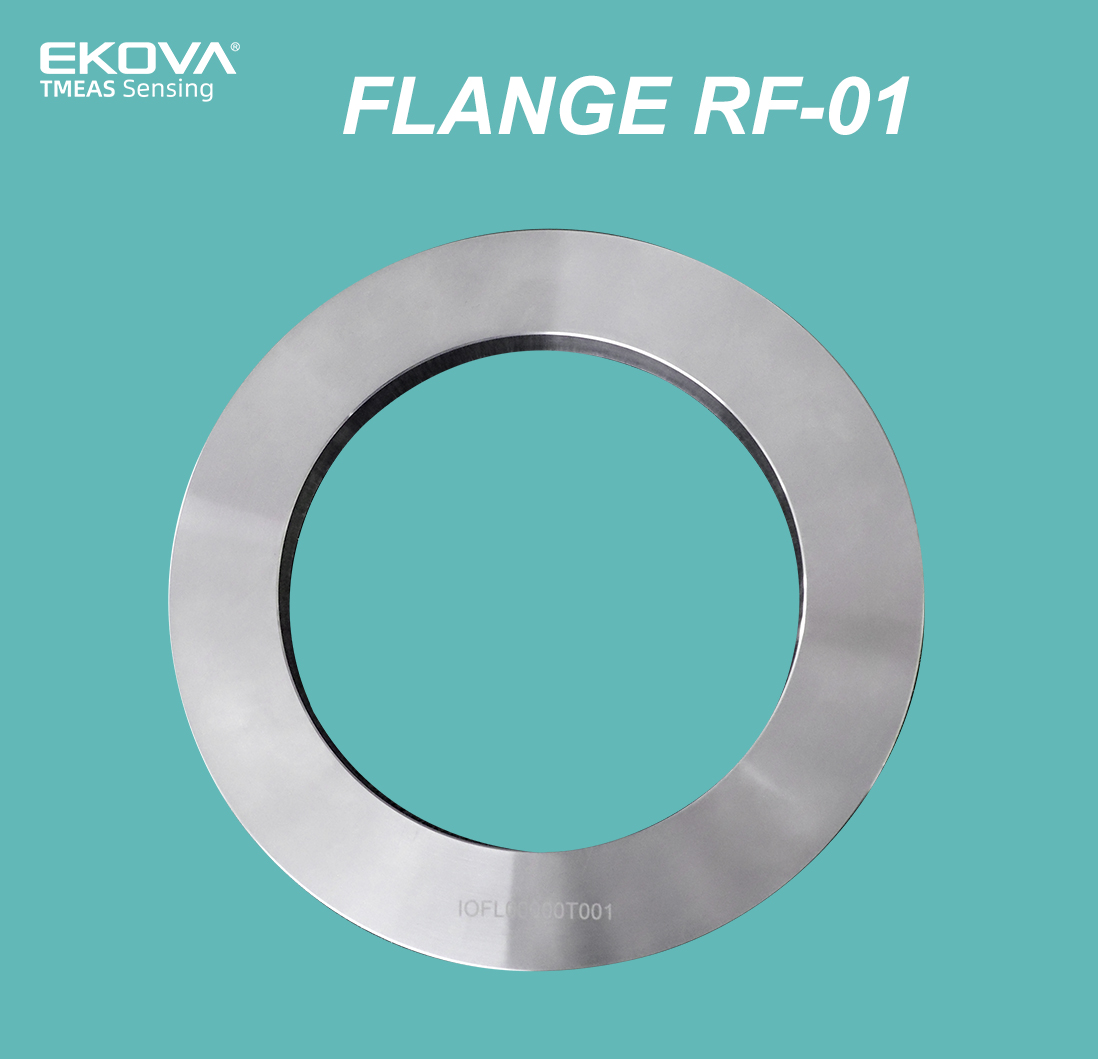

Product Name:Flange RF-01

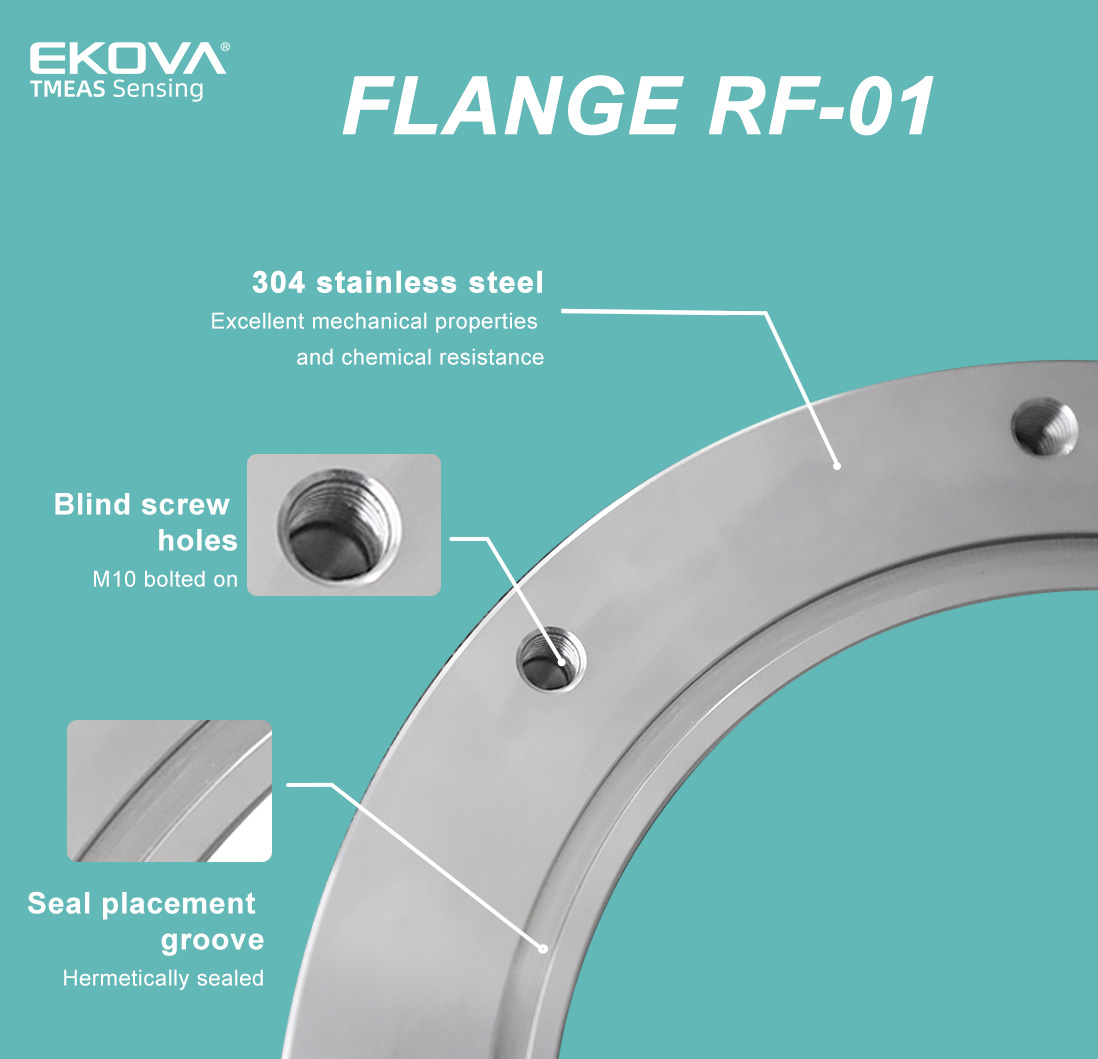

Product features:304 stainless steel processing, with seal placement groove, hermetically, customization supported.

Authenticity guaranteed

Tailor-made

Precipitated with expert experience

RF-01 flange is a sealed structural part used with the fiber optic feedthrough adapter, which is processed by stainless steel. High mechanical strength, good air tightness after using sealing ring and flat seal of feedthrough adapter plate, and can be Used permanently in an environment from -40°C to 200°C.

Characteristics

Specifications

Mechanical & Selection instructions

Applications

On going...

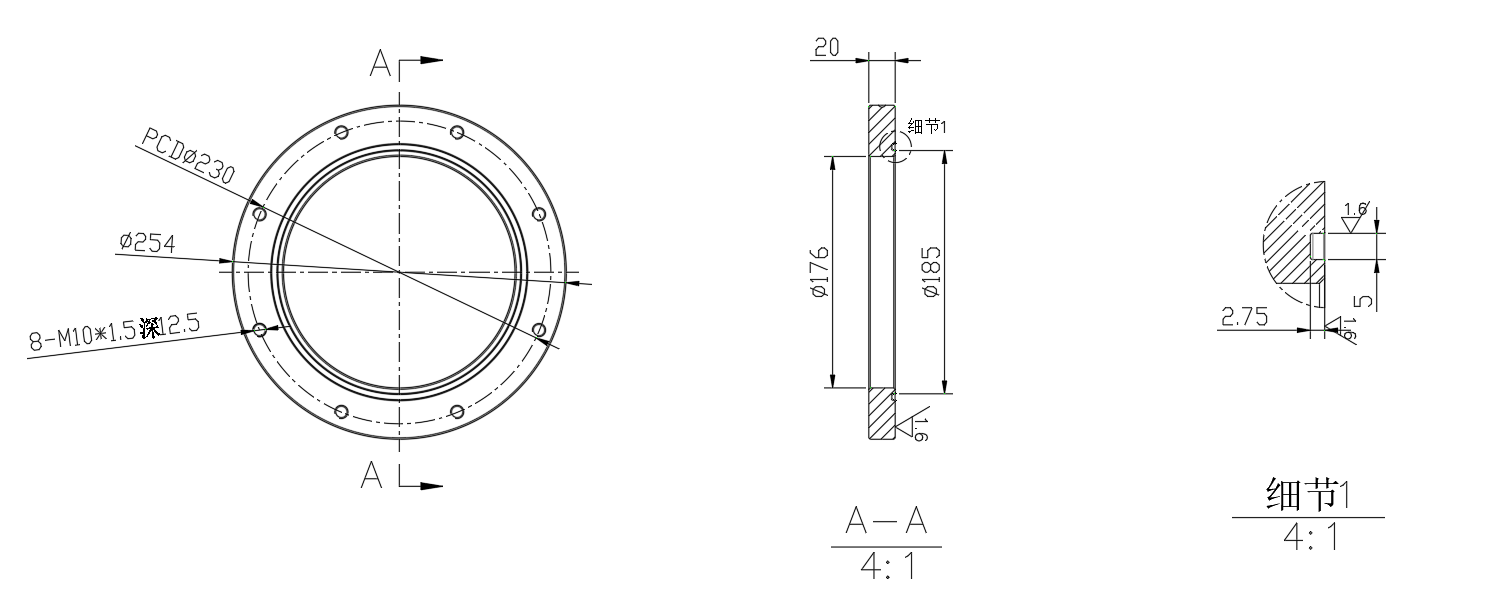

Mechanical

Selection instructions

On going...
